This software-delete solution for CNH machines (Case, New Holland, Steyr, etc.) with Bosch EDC17C49 ECU disables the function of the EGR and allows the wiring loom to be modified and the EGR valve to be internally blocked with a metal plate.
All Faultcodes in relation to the EGR are disabled with this Software.
The following steps need to be taken:
1.) Turn the ignition switch off, wait 1 min, disconnect ECU

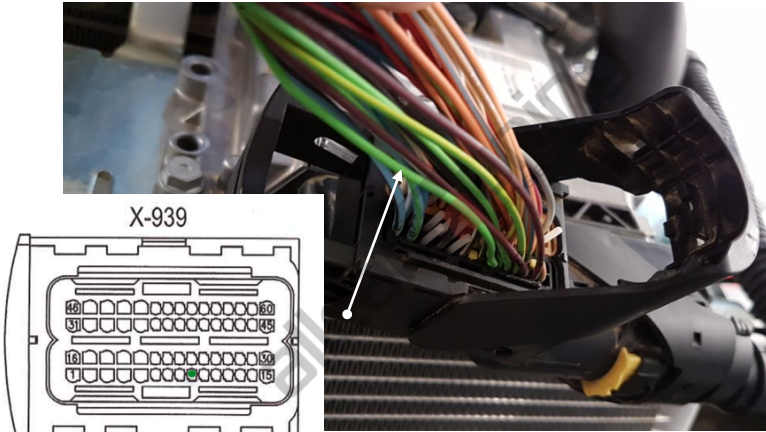

2.) Cut wire, PIN number 9 (+5V)
3.) Isolate both ends with electrics tape or simular
4.) Programm the EGR OFF software from Tuning24.
5.) After the programming was successful, check for errors
