How to read a Kubota ACM | Flashpoint Print

Modified on: Mon, 12 Apr, 2021 at 10:20 AM

In order to read the ACM of a Kubota with Denso ECU through plugin 1594 you need to follow these steps:

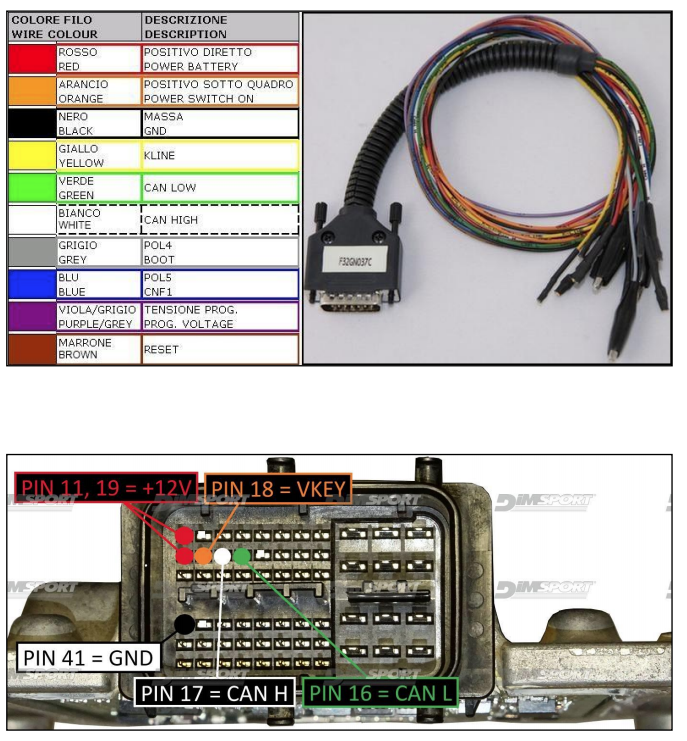

1. Connect the NewTrasdata to the ACM like shown in the DimSport manual:

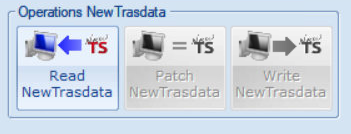

2. choose "Read NewTrasdata" in the Flashpoint application:

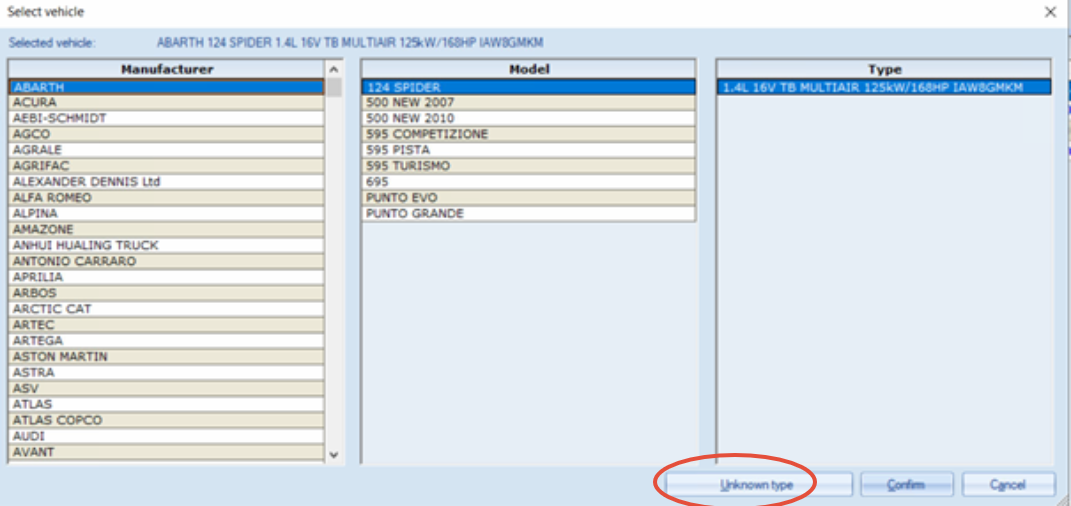

3. choose unknown type on the bottom of this menu:

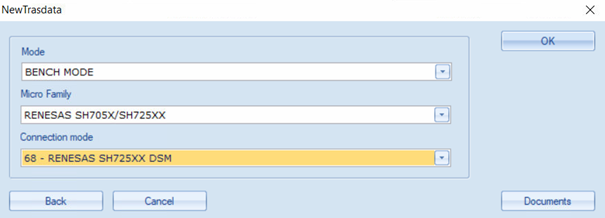

4. choose these parameters:

5. go on and read the ECU.
