How to read the ACM from a Kubota machine : ALLCARTUNING SUPPORT

How to read the ACM from a Kubota machine Print

Modified on: Mon, 12 Apr, 2021 at 11:14 AM

On some Kubota models it is necessary to read both the ECU and ACM in order to perfrom a delete on it.

In order to read the ACM of a Kubota with Denso ECU through plugin 1594 you need to follow these steps:

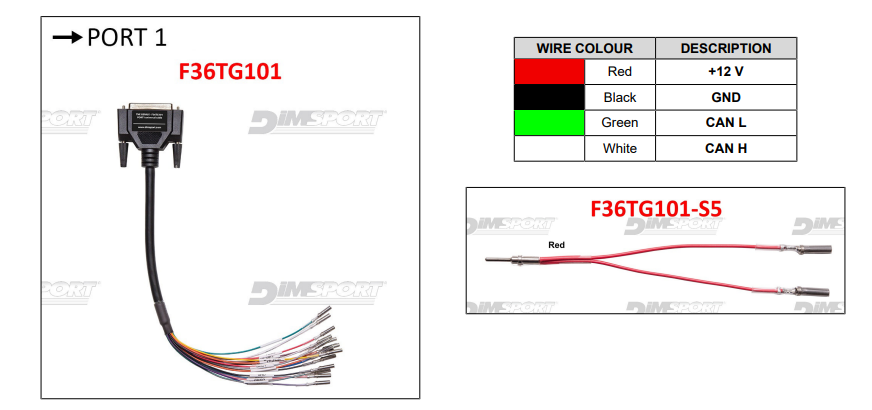

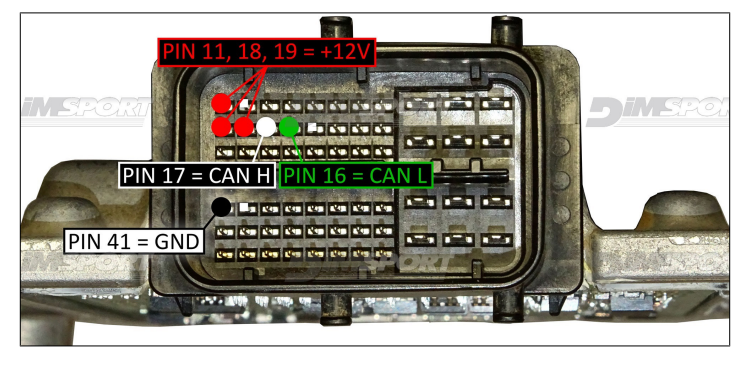

1. Connect the NewTrasdata to the ACM like shown in the DimSport manual from plugin 1594:

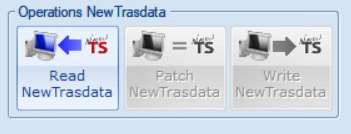

2. choose "Read NewTrasdata" in the Flashpoint application:

3. choose unknown type on the bottom of this menu:

4. choose these parameters:

5. go on and read the ECU.
